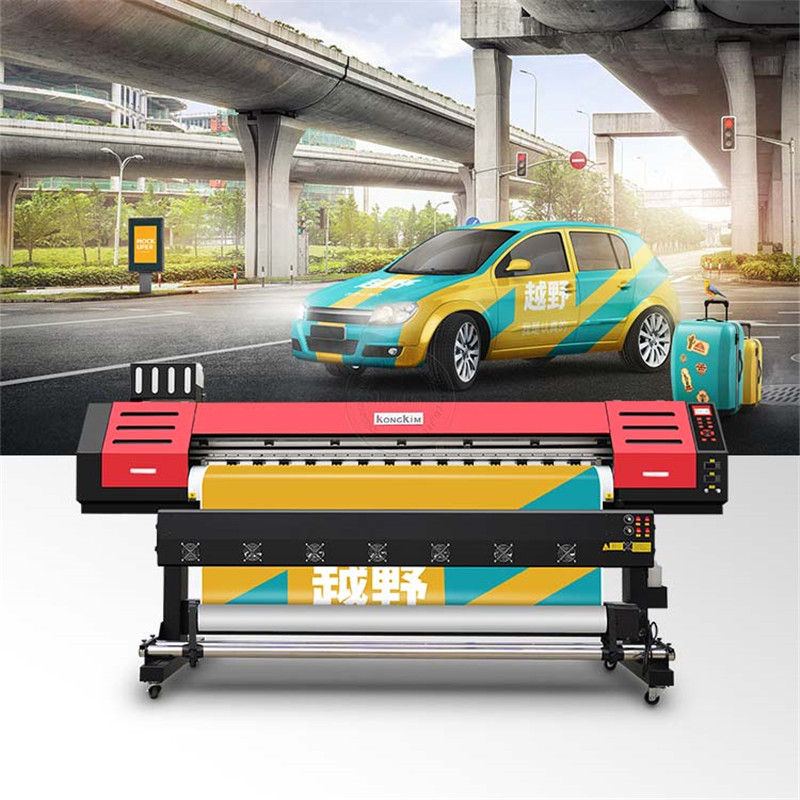

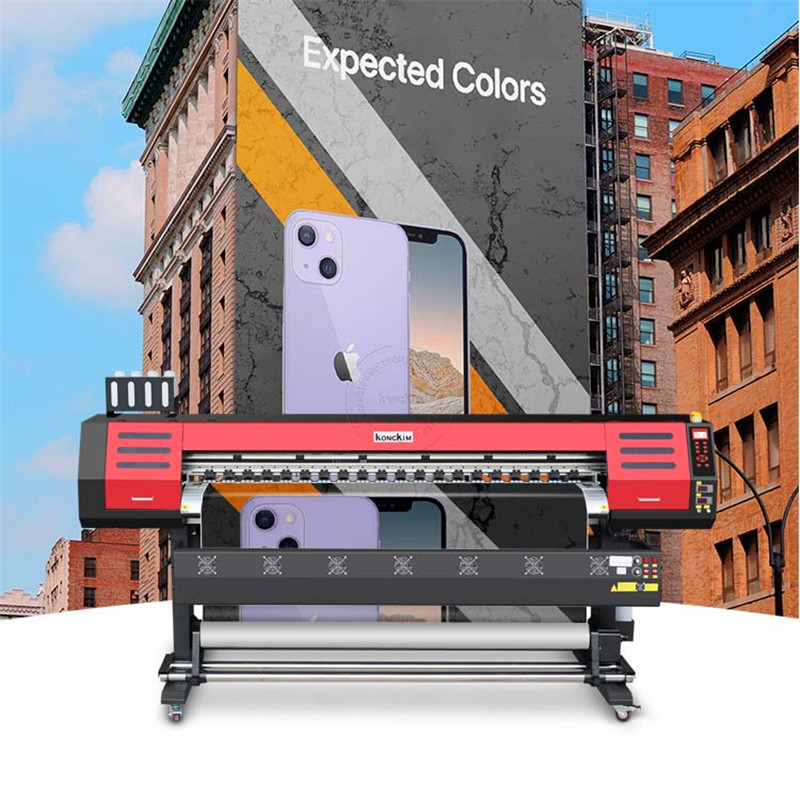

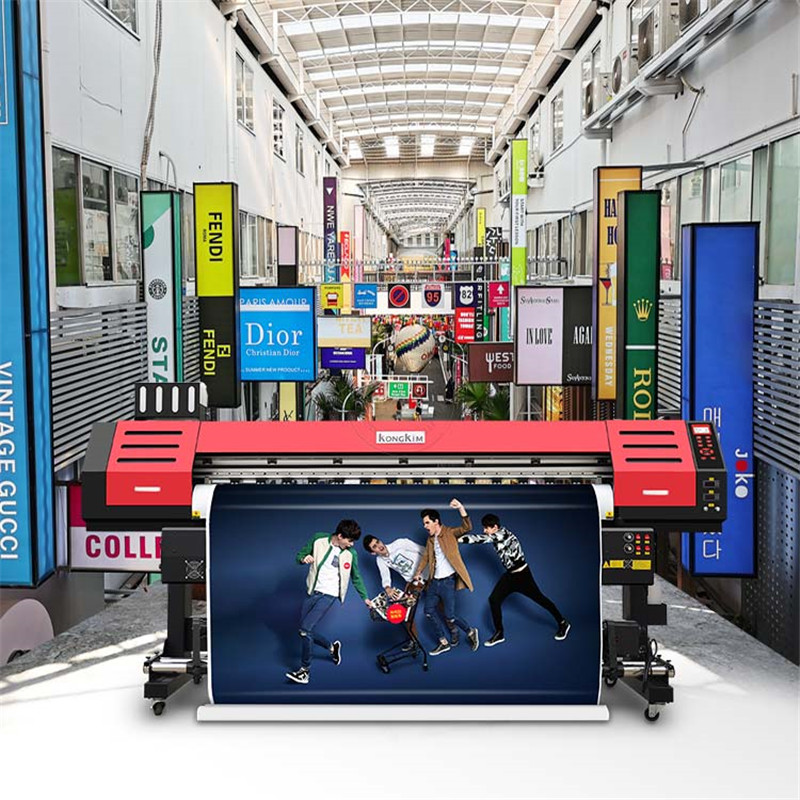

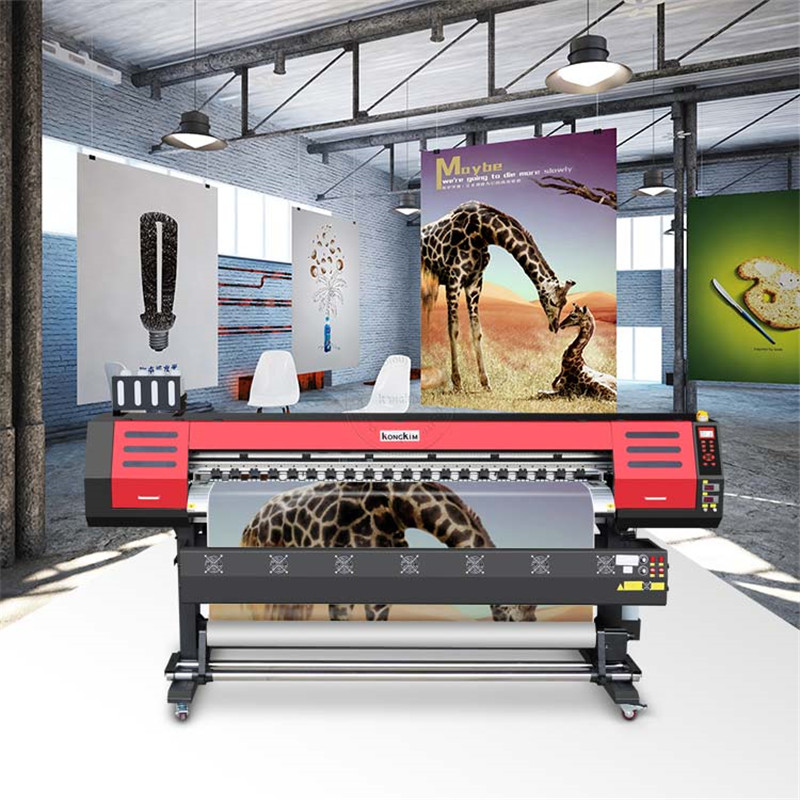

Luxurious aluminium alloy wide format double DX5 i3200 heads eco solvent printer
We are a professional digital printers manufacturer
● Circuitl board
From Beijing BYHX circuit and control system
China's most famous digital printing circuit system
Give the printer the most continuous and stable working core
● Print platform
Over 14mm printing platform,
5 rouos of negative pressure suction Ruler,
no longer need to worry about setting the origin
●Beam ●Guide rail
High strength alloy beam
l.5cm imported silent guide rail
Mechanical error less than 0.01mm
● Carriage
High stability alloy material
with low thermal expansion system, high precision
Both material inspection device, effectively protect the print head
● Servo motor
XY axis double servo motor
Receive the signal and feedback the signal
Perfect reproduction of every pixel
● Ink-station
Lifing ink-station
Upgraded baseplate and stepper-motor
The cleaning success rate is more than 90%
● Ink-tank
Two-stage ink feeding system
1.5L large ink-tank + 220ml small ink-cartridge
Stable liquid level for optimal print continuity
● Drying system
Two-stage platform heating system
External cold and hot air dryer
Easily dry 4x100% ink pattern
● Servo motor
XY axis double servo motor
Receive the signal and feedback the signal
Perfect reproduction of every pixel
Machine Parameters
Printing speed
EPSON I3200-E1 head compatible with eco solvent & sublimation inks
EPSON I3200-A1 / 4720 head suitable for sublimation ink:
EPSON DX5 F186000 head compatible with eco solvent & sublimation inks
( The I3200 print head is recommended )
More Printer configurations
Quality is everything
We has many years of rich experience in the production of
digital inkjet printers, product quality is absolutely guaranteed
MULTI-PURPOSE
WIDELY USED, EXPAND BUSINESS
ADVERTISING INDUSTRY
Indoor、outdoor PP; Light filem;Tarpaulin and other materials
HOME DECORATION INDUSTRY
Wallpaper、Mural、Decorative painting、Soft film
| Model | * RT-1802 | ||
| Print Head | * Original 【 i3200 / 4720 / DX5 Print-Head * 1 / 2pcs | ||
| Print Size | Maximum 1850mm | ||
| Resolution | i3200-A1 / 4720 | DX5 | |
| Printing Speed | 4Pass | 51 sqm/h | 28 sqm/h |
| 6Pass | 38 sqm/h | 22 sqm/h | |
| 8PAss | 25 sqm/h | 14 sqm/h | |
| Printing Material | Eco-solvent : Vinyl sticker ,flex banner; tarpaulin ,wall paper ,PP… Sublimation : Sublimation paper , t-shirt , clothes ; tower ; home textile.. | ||
| Height Adjustment | 1mm ~ 3mm adjust | ||
| Maintenance Of The Head | One button cleaning print-head by solvent | ||
| Electronic control system | Beijing BYHX circuit boards and control software | ||
| RIP Software | MainTop RIP/ PhotoPRINT | ||
| Ink Supply | Positive pressure type continuous ink supply | ||
| * Two-stage constant liquid level ink supply | |||
| Print Model | Roll to roll synchronous printing and take up | ||
| Electric Require | Tempreture : 18 ℃ ~ 28℃ ; Humidity : 35%RH ~ 70%RH | ||
| Power Supply | AC 110V/220V 50/60HZ ; Maximum power : 2.8KW | ||
| Printer Size | L*W*H : 3200mm * 900mm * 1350mm 240KG | ||
| Package Size | L*W*H : 3320mm * 730mm * 720mm 300KG | ||
| Function | Speed adjustable automatic synchronous printer shaking powder | ||
