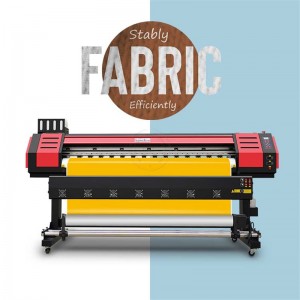

1.8m 6ft digital national flag polyester fabric digital printer with heater
Bearing
Multi-stage ball bearing ,ess friction
More torque transfer keep quiet at the same time
Heating & Sublimation System
One-piece heating&take up system. When printing at the same time, heated and taken up. Save manpower and space. If it is sublimation ink, it will be sublimation directly, and then finished. Direct to fabric ,don't
need transfer paper,this further reduces the cost, and improves capacity.
Double I3200 Heads Ink Station
All aluminum alloy production, lift automatic ink station. Double 42 step by step motor. When not working, inkstation automatically rises to seal print head...Make sure print head is not dry. Carrige has automatic heating function, not afraid of winter
Feeding System
Automatic tension multi-link type Feeding system.
In the process of printing, keep the same tension, Ensure that the fabric is printed in high resolution and smoothed, Large torque stepping motor, large volumes of thick cloth can also be printed
Our Service：
1.We have professional engineers team who have more than 10 years, are very patient to support all foreign clients;
2.We can support 24hous for online training and guide you step by step;
3.Oversea aftrer-sale service also available,our engineers have passport and support you for overseas training in your place.
4.We have showroom in Guangzhou, warmly welcome to learn more printers technology in our company,and we could discuss more details face to face.
| Product Model | TX-1802 | TX-1804 | ||||
| Number of printhead | 2pc i3200-A1/4720 heads | 4pc i3200 i3200-A1/4720 heads | ||||
| Printing width | 1830mm (72inch/6ft ) | 1830mm (72inch/6ft ) | ||||
| Speed | 2Pass | 71 m2/h | 140 m2/h | |||
| 3Pass | 47 m2/h | 93 m2/h | ||||
| 4Pass | 35 m2/h | 71 m2/h | ||||
| Printer Head height | Adjustable 1.5~8mm | |||||
| Resolution | 3.5pl v720*1440*3200dpi | |||||
| Heating&Sublimation System | Synchronous Heating&Sublimation system ,Direct output | |||||
| Working temperature | Temperature range: 20 to 30degree | |||||
| Printing Type | Direct to textile | |||||
| Media | Width: 1850mm | |||||
| Media feeding mode:Automatic feeding and taken-up system | ||||||
| Fabrics: sportwear, cloth, garment, bedsheet, pillow, cushion, flag, cotton, polyester, canvas ,gridding cloth and so on | ||||||
| Ink | Pigment Ink ,sublimation ink | |||||
| Ink Supply Mode: Continue ink supply system | ||||||
| Ink Cartridge:Bulk Ink supply system(1500ml*4) | ||||||
| RIP software | Maintop Rip & PhotoPRINT & Wasatch | |||||
| Supported Image format: Tiff,JPEG | ||||||
| Color Mode:RGB or CMYK | ||||||
| Control Software | Control Software (Cn/En) | |||||
| Interface | USB 2.0/3.0 | |||||
| Operating System | Windows 7 , Windows 10 | |||||
| Voltage | AC 220V 50HZ/ 60HZ (AC 110V optional) | |||||
| Power Consumption | Printing Power:0.3KW + Heating &Sublimation power : 12KW | |||||
| Working Environment | Temperature:18-28℃ | |||||
| Humidity:35~70% Non-condensing | ||||||
| Packing sigz/Weight | [L*W*H : 3360 * 760 * 1020 mm / 450KG] + [3350*970*1110mm / 250KG | |||||
